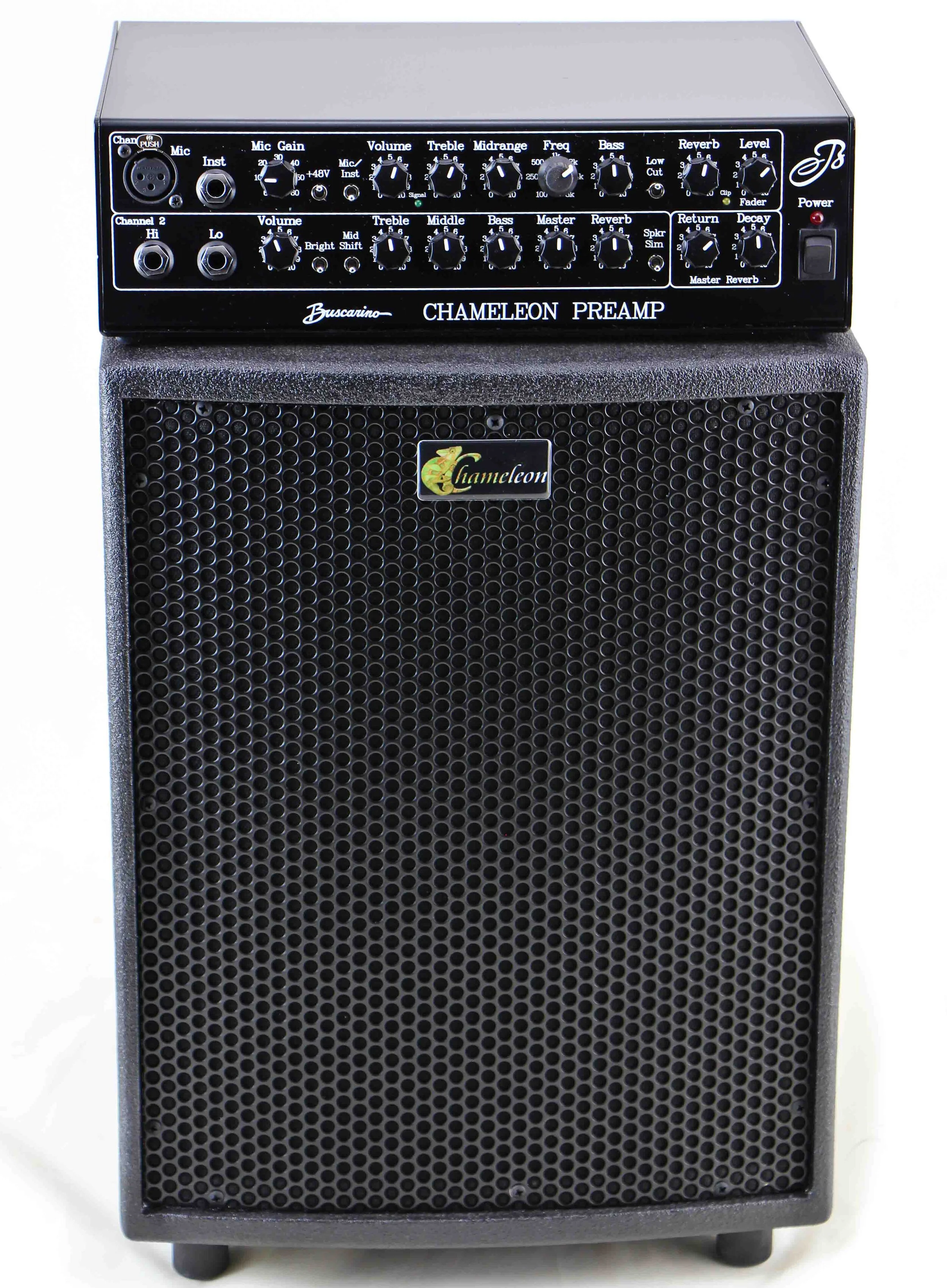

CHAMELEON AMPLIFICATION SYSTEM

Combo Price: $3,100.00

Chameleon speaker only: $1,695.00

2 Channel Preamp only: $1,595.00

The Chameleon Amplification System is a unique musical instrument amplification system that works well with any Instrument and Vocals. This System consists of The 8” Chameleon Powered Speaker and a 2 channel preamp which combines a solid state channel with everything needed for a microphone and acoustic instruments. Channel 1 offers stunning clarity to assist in shaping your sound without sacrificing your instrument's natural tone. Channel 2 is a Clean Tube Channel based off of the Fender Black Face Amplifier which is great for use with electric guitars and acoustic instruments as well. tHE cHAMELEON sPEAKER COMES PREPROGRAMMED BY ME WITH 8 PRESETS BUT WITH THE AVAILABLE SOFTWARE FOR PC YOU CAN CHANGE, ADD OR COME UP WITH WHATEVER PRESETS WORK FOR YOU. The Chameleon Amplification system has a remote design. You can use the preamp next to you and have the speaker at a distance or place the preamp on top of the speaker for a compact combo setup. I designed the system to be extremely versatile so that each component works great on its own. The preamp can be used with other amplifiers or run through a P.A. System using the Balanced OuT and Speaker Simulator or with other powered speakers and guitar amplifiers. The Chameleon Speaker can be used with other Amplifiers or Amp Simulators like the Headrush and the Axe Fx 8. You can even run your recorded music through it from your devices with the available bluetooth adapter for playing music at home or during your break at gigs. The best thing about this combo is it does it all: both acoustic and electric instruments, vocals and recorded music… they all sound amazing through this setup. Don’t take my word for it. Check out the video which features a little bit of everything so you can hear it in action.

Click below to see what our Chameleon System artists say!

testimonials

recorded with zoom h1-n handheld recorder 18” from the Chameleon Speaker. Cabaret Nylon string with ultra tonic pickup. Click below to listen.

CHAMELEON SPEAKER FEATURES

LIGHTWEIGHT AT 28LBS AND VERY POWERFUL
MODULAR: CAN BE USED ON THE GROUND OR FLOWN USING A STANDARD SPEAKER STAND
HAS 8 PRESETS FOR DIFFERENT ROOM ENVIRONMENTS WHICH IS BASED ON HIGH AND LOW PASS FILTERS
PROGRAMABLE: IT COMES PRE PROGRAMMED BUT WITH THE AVAILABLE SOFTWARE FOR PC YOU CAN MAKE YOUR OWN
BI AMP STEREO AMP RUNS ON ANY VOLTAGE FROM 90 TO 240
HIGHEST QUALITY PRO AUDIO SPEAKER AND HORN WITH POWERFUL YET LIGHWEIGHT NEODYMIUM MAGNETS
TOUGH POLYURETHANE OUTER COATING FOR LONG LASTING DURABILITY
RECESSED ALUMINUM HANDLE ALLOWS FOR FLAT TOP SURFACE
THE cABINET IS MADE OF SOLID bIRCH cORE pLYWOOD AND GLUED LAP JOINTS
padded cover with accessory pouch available for $100

8” CHAMELEON SPEAKER PRESETS

full range: optimal frequency response low to high 50hz to 20,000 hz best for when speaker is on a stand
high pass filter 60hz: use to reduce extreme low end when on a chair
high pass filter 80 hz: reduces low end more than #2, useful when speaker is on the floor
high passfilter 100 hz: reduces low end even further, also useful when speaker is on the floor
high pass filter 80 hz and low pass filter 6,500 hz
high pass filter 80 hz and low pass filter 5,000 hz
high pass filter 80 hz and low pass filter 4,500 hz
low pass filter 4,000 hz, no high pass filter

high pass filter allows highs to pass through and rolls off lows at designated hz

low pass filter allows lows to pass throuh and rolls off highs at designated hz

preset 1 is full range useful for acoustic instruemnts, vocals, keyboards, etc

the power con plug slides in and twists to lock. shut off power switch on the amp to plug and unplug

set the volume on the speaker all the way up. only turn down if you are using a device that has a higher output that overdrives the speaker

amplifier in the speaker will run on anything from 80 to 240 volts. this is really nice if working in a club where the voltage may drop due to overload of equipment on the circuit or with long extension lines

2 CHANNEL PREAMP FEATURES

SOLID METAL CABINET
CHANNEL 1 MIC/LINE OR BOTH, WITH PHANTOM POWER
DIGITAL SPRING REVERB WITH GAIN CONTROLS FOR EACH CHANNEL
PARAMETRIC MIDRANGE FOR SOLID STATE CHANNEL
SEPARATE MIC AND LINE VOLUME CONTROLS
CHANNEL 2 IS A TRUE TUBE CHANNEL MODELED AFTER THE CLASSIC FENDER BLACK FACE AMP
TUBE CHANNEL USES PASSIVE TONE CONTROLS (TREBLE, MIDDLE, BASS) FOR SMOOTH ANALOG SOUND
TUBE CHANNEL FEATURES SWITCHABLE SPEAKER SIMULATOR MODELED AFTER CELESTION SPEAKER FOR USE WITH PA OR FULL RANGE SPEAKERS FOR A TRUE GUITAR AMP SOUND
BALANCED OUTPUT WITH GROUND LIFT
1/4” LINE LEVEL OUTPUT
IEC POWER CORD INCLUDED
SEPARATE EFFECTS SENDS AND RETURNS FOR EACH CHANNEL
120 OR 240 VOLTAGE SWITCHABLE (ACCESSED INTERNALLY)
padded gig bag included

CHANNEL 1 CONTROLS FROM LEFT TO RIGHT

MIC: XLR INPUT FOR BOTH CONDENSER AND DYNAMIC MICROPHONES
INST: THIS IS A HIGH IMPEDENCE INPUT OF 1 MEG. FOR USE WITH GUITARS, BASSES, KEYBOARDS, ETC.
MIC GAIN: CONTROLS VOLUME OF THE XLR MICROPHONE INPUT, TURN THIS DOWN ALL THE WAY TO AVOID FEEDBACK AFTER PLUGGING IN A MIC AND BRING THE VOLUME UP SLOWLY
48V: TURN THIS ON FOR CONDENSER MICROPHONES (ALWAYS BEST TO HAVE MIC VOLUME DOWN WHEN DOING THIS
MIC/INST: SELECTOR SWITCH FOR MICROPHONE INPUT, LINE INPUT, OR BOTH COMBINED. sWITCH DOWN INSTRUMENT INPUT, SWITCH MIDDLE COMBINES MICROPHONE AND INSTRUMENT INPUTS, SWITCH UP MICROPHONE ONLY
VOLUME: CONTROLS THE VOLUME OF THE INSTRUMENT INPUT ONLY
TREBLE: THIS IS AN ACTIVE CUT AND BOOST CONTROL. SETTING 5 IS FLAT. SETTINGS BELOW 5 CUT TREBLE. SETTINGS AVOVE 5 BOOST TREBLE
MIDRANGE: CONTROLS THE CUT AND BOOST OF THE FREQUENCY SELECETD. SETTING 5 IS FLAT. SETTINGS BELOW 5 CUT THE FREQUENCY SELECTED. SETTINGS ABOVE 5 BOOST THE FREQUENCY SELECTED
FREQ: SELECT THE MIDRANGE FREQUENCY YOU WISH TO CUT OR BOOST FROM 100 HZ TO 8 KHZ
BASS: CONTROLS BASS OUTPUT. SETTING 5 IS FLAT. SETTINGS BELOW 5 CUT BASS. SETTINGS ABOVE 5 BOOST BASS
LOW CUT: HIGH PASS FILTER, CUTS BASS 12DB PER OCTAVE AT 100 HZ. USE TO REDUCE RUMBLE FROM SUB LOW BASS FREQUENCIES
REVERB: CONTROLS THE REVERB AMOUNT ON CHANNEL ONE
LEVEL: CONTROLS OVERALL OUPUT LEVEL OF CHANNEL 1. CONTROLS BOTH INSTRUMENT AND MICROPHONE INPUTS

CHANNEL 2 TUBE CHANNEL CONTROLS FROM LEFT TO RIGHT

HI: INPUT USED FOR GUITARS AND BASSES. 1 MEG INPUT
LOW: INPUT USED FOR HIGH OUTPUT INSTRUMENTS. THIS INPUT IS 6DB LOWER THAN THE HI INPUT, ALSO 1 MEG
VOLUME: cONTROLS INPUT VOLUME ON CHANNEL 2. SET BETWEEN 3 AND 4 BASED ON PICKUP OUTPUT
BRIGHT: BOOSTS HIGH END ABOVE 10K
MID SHIFT: CHANGES THE CHARACTER OF THE MIDRANGE CONTROL
TREBLE: PASSIVE BOOST AND CUT OF THE TREBLE FREQUENCIES. 5 IS FLAT. SETTINGS ABOVE 5 BOOST TREBLE. SETTINGS BELOW 5 CUT TREBLE
MIDDLE: PASSIVE BOOST AND CUT OF THE MIDDLE FREQUENCIES. 5 IS FLAT. SETTINGS ABOVE 5 BOOST MIDRANGE. SETTINGS BELOW 5 CUT MIDRANGE.
BASS: PASSIVE BOOST AND CUT OF THE BASS FREQUENCIES. 5 IS FLAT. SETTINGS ABOVE 5 BOOST BASS. SETTINGS BELOW 5 CUT BASS
MASTER: CONTROLS OVERALL OUTPUT OF CHANNEL 2. BEST SETTING IS ON 5
REVERB: CONTRLS REVERB ON CHANNEL 2
SPKR SIM: USE THIS SWITCH WHEN GOING THROUGH A P.A. SYSTEM OR FULL RANGE POWERED SPEAKER. EMULATES THE SOUND CREATED BY A CELESTIAL SPEAKER CABINET. SPEAKER SIM SWITCH DOWN IS OFF AND UP IS ON
RETURN: CONTROLS OVERALL OUTPUT OF THE DIGITAL SPRING REVERB. MOST USEFUL SETTINGS ARE BETWEEN 5&7
DECAY: CONTROLS THE LENGTH OF THE REVERB DECAY. MOST USEFUL SETTING BETWEEN 5&7

BACK OF 2 CHANNEL PREAMP

POWER: IEC CABLE INPUT ALSO CONTAINS FUSE PROTECTION. REPLACEABLE VIA SMALL SCREWDRIVER TO REMOVE AND REPLACE
CHANNEL 1 SEND: OUTPUT SEND FROM CHANNEL 1 POST e.Q.. CAN BE USED TO SEND CHANNEL 1 TO AN AMPLIFIER
CHANNEL 1 RETURN: INPUT USED FOR EFFECTS LOOP
CHANNEL 2 SEND: OUTPUT SEND FROM CHANNEL 1 POST e.q. CAN BE USED TO SEND CHANNEL 1 TO AN AMPLIFIER
CHANNEL 2 RETURN: INPUT USED FOR EFFECTS LOOP
BALANCED OUT: THIS IS THE MAIN OUTPUT TO USE WITH OUR CHAMELEON SPEAKER OR MOST POWERED SPEAKERS OR TO GO TO A P.A. SYSTEM
GND LIFT: PUSH SWITCH IN TO LIFT THE GROUND OFF THE BALANCED OUTPUT. USE ONLY IF YOU ARE GETTING A HUM FROM THE ELECTRICAL OUTLET YOU ARE USING
MAIN OUT: HIGH IMPEDENCE OUTPUT IS 6 DB LOWER IN VOLUME THAN THE BALANCED OUTPUT. USE THIS FOR AMPLIFIERS AND POWERED SPEAKERS WITHOUT A BALANCED INUT. EXAMPLE WOULD BE AN ACOUSTIC GUITAR AMPLIFIER.
